- Dual outputs, for smart load management
- Maximum PV input current 27A x 2 (Max 40A)
- Maximum PV input: 11000W (5500W x 2)
- Wide PV input voltage range: 90 ~ 450 VDC
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
- Supports USB On-the-Go function
- Reserved communication port for: USB/RS232/RS485/WiFi/Dry-contact/BTS Support optional GFCI, Rapid shutdown, AFCI detection
- Maximum charging current 120A
- Battery independent design
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Parallel operation with 6 units
- Maximum AC Output 8000W

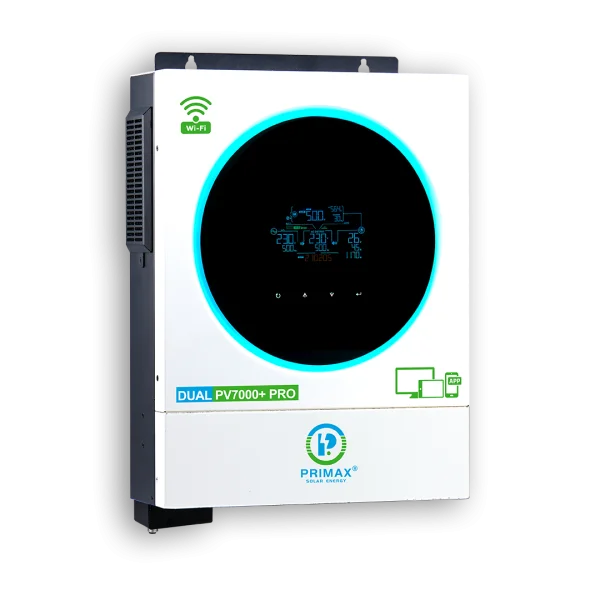

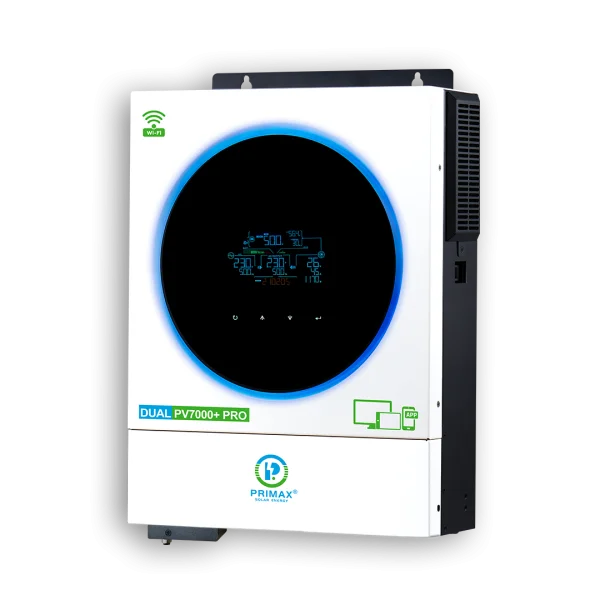

PRIMAX GALAXY 6KW DUAL PV7000+ PRO
Original price was: Rs. 170,000.Rs. 160,000Current price is: Rs. 160,000.
Description
PRIMAX GALAXY DUAL PV11000+Max Ultra 8KW
The PRIMAX GALAXY Max Ultra 8KW DUAL PV11000+PRO is a high-performance solution designed to meet the energy needs of modern homes and businesses. With its pure sine wave output, it ensures clean and stable power delivery, making it ideal for powering sensitive electronic devices.
This inverter supports a maximum DC input power of 9000W, enabling it to harness substantial energy from solar panels. Its dual MPPT design, with two strings per MPPT, maximizes solar energy harvesting while maintaining flexibility in panel configurations. The wide MPPT voltage range (150-450V) further enhances compatibility with various solar setups, while the high starting voltage (125V) ensures efficient operation even in low sunlight conditions.
The inverter’s rated output power of 8KW provides ample energy for demanding applications, while its maximum input current of 30/18A ensures efficient energy conversion. Compatible with both lithium and lead-acid batteries, this inverter offers a smart battery charging and discharging system, delivering up to 120A to optimize battery life and performance.
With integrated BMS communication via CAN and RS485, the inverter seamlessly connects with battery management systems, ensuring real-time monitoring and control. Designed to endure challenging environments, the built-in anti-dust kit protects internal components, enhancing durability and reliability.
Despite its robust capabilities, the PRIMAX GALAXY DUAL PV11000+MAX is compact and lightweight, with dimensions of 424mm x 555mm x 197mm and a weight of just 19kg, making installation straightforward.
